D840WP
D840WP
D840WP Click to enlarge

D840WP

32-Bit, Multi Purpose, Waterproof, Steel Gear Servo

PWM TTL Cored Carbon Brush
30
KGF·CM
Max Torque
0.11
SEC/60°
Speed
227
GRAMS
Weight
Torque19 ~ 30 kgf·cm
Speed0.17 ~ 0.11 sec/60°
Operating Voltage4.8 ~ 7.4 V

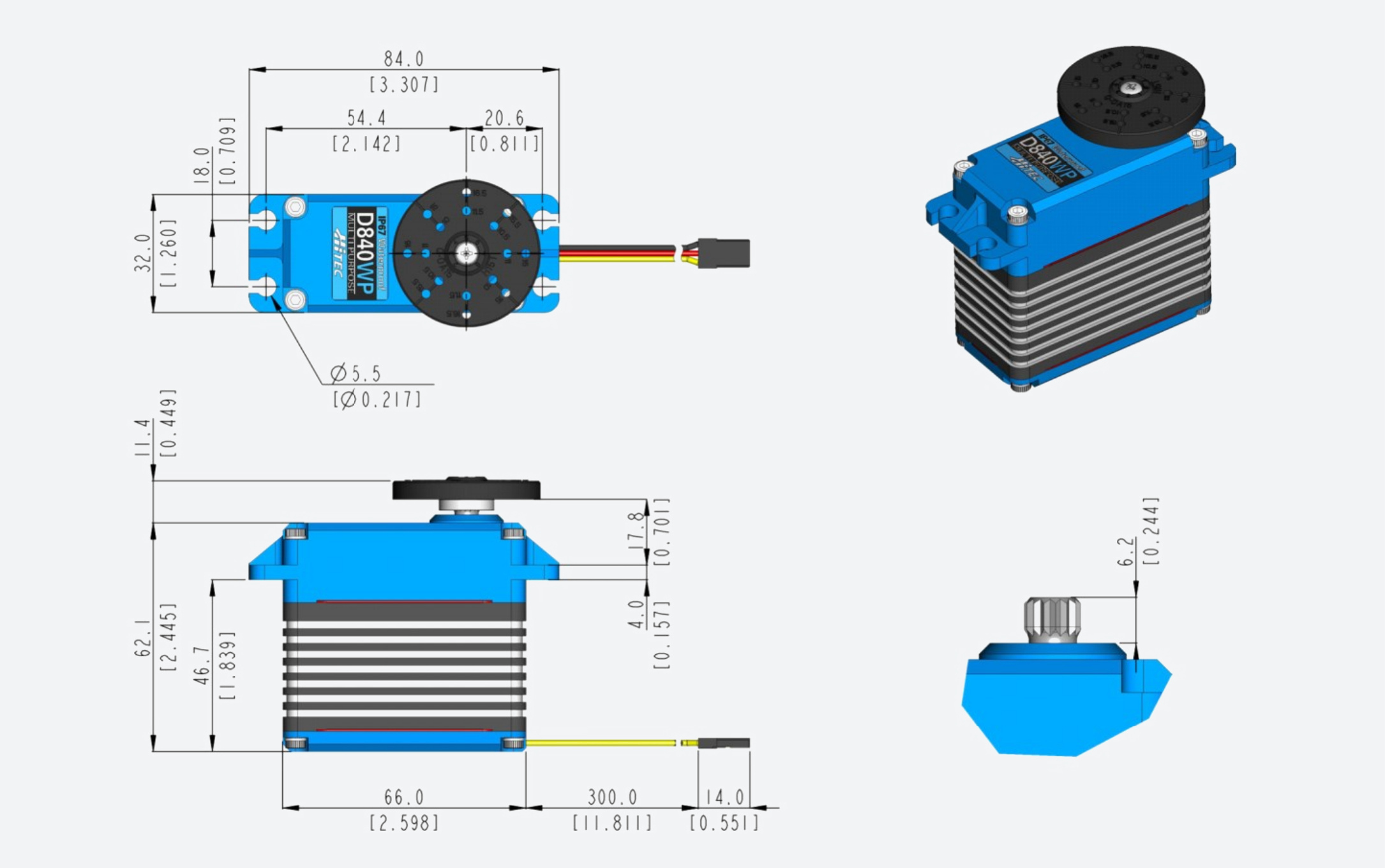

Dimensions (L×W×H)66 × 32 × 62 mm
Motor TypeCored Carbon Brush
Gear TypeSteel
ProtocolsPWM,TTL
Loading 3D model…
Drag to rotate · Scroll to zoom
Product Description
The steel D-840WP is part of our D-Series servo line. All Hitec D-Series servos have been designed using our brand new, cutting edge, custom engineering. Combining industry leading high-resolution, state-of-the-art ultra-response technology with a 32-bit MCU and 12-bit ADC for unprecedented programmability and flexibility, these servos deliver significantly smoother movement. The speedy, powerful line operates on a wide 4.8 ~ 8.4 voltage range, allowing use with any common battery chemistry without the need for adapters or regulators. Featuring Hitec’s 15 tooth HD output spline with 3mm hex screw, each D-Series servo brings monster performance never known before in the market.
Downloads
D840WP_3dmodel
ZIP Datasheet
D840WP_Specsheet(v2.1)_22H
PDF Datasheet
More Products
View All →
D89MW
D89MW
32-Bit, Wide Voltage, Metal Gear Servo

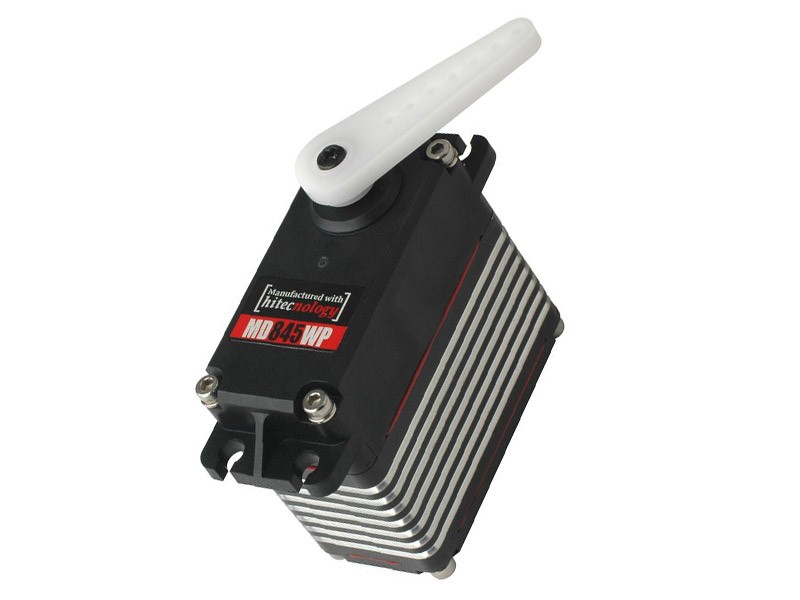

MD845WP
MD845WP
32mm Standard Steel Gear Waterproof
D145SW
D145SW
32-Bit, Wide Voltage, Steel Servo

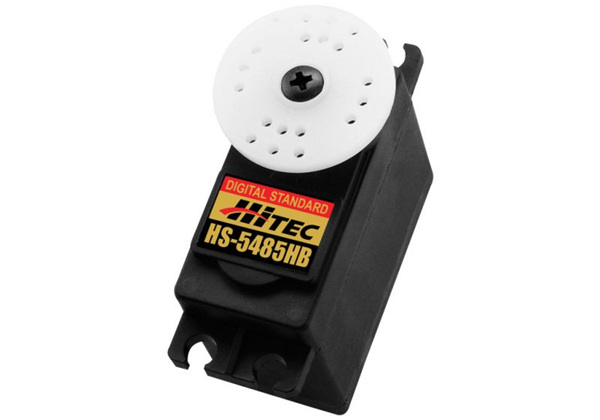

HS-5485HB
