MD141SH

10mm Standard Metal Gear

PWM TTL Coreless

KGF·CM

Max Torque

0.1

SEC/60°

Speed

26.7

GRAMS

Weight

Torque5.7 ~ 7 kgf·cm

Speed0.13 ~ 0.1 sec/60°

Operating Voltage3.5 ~ 8.4 V

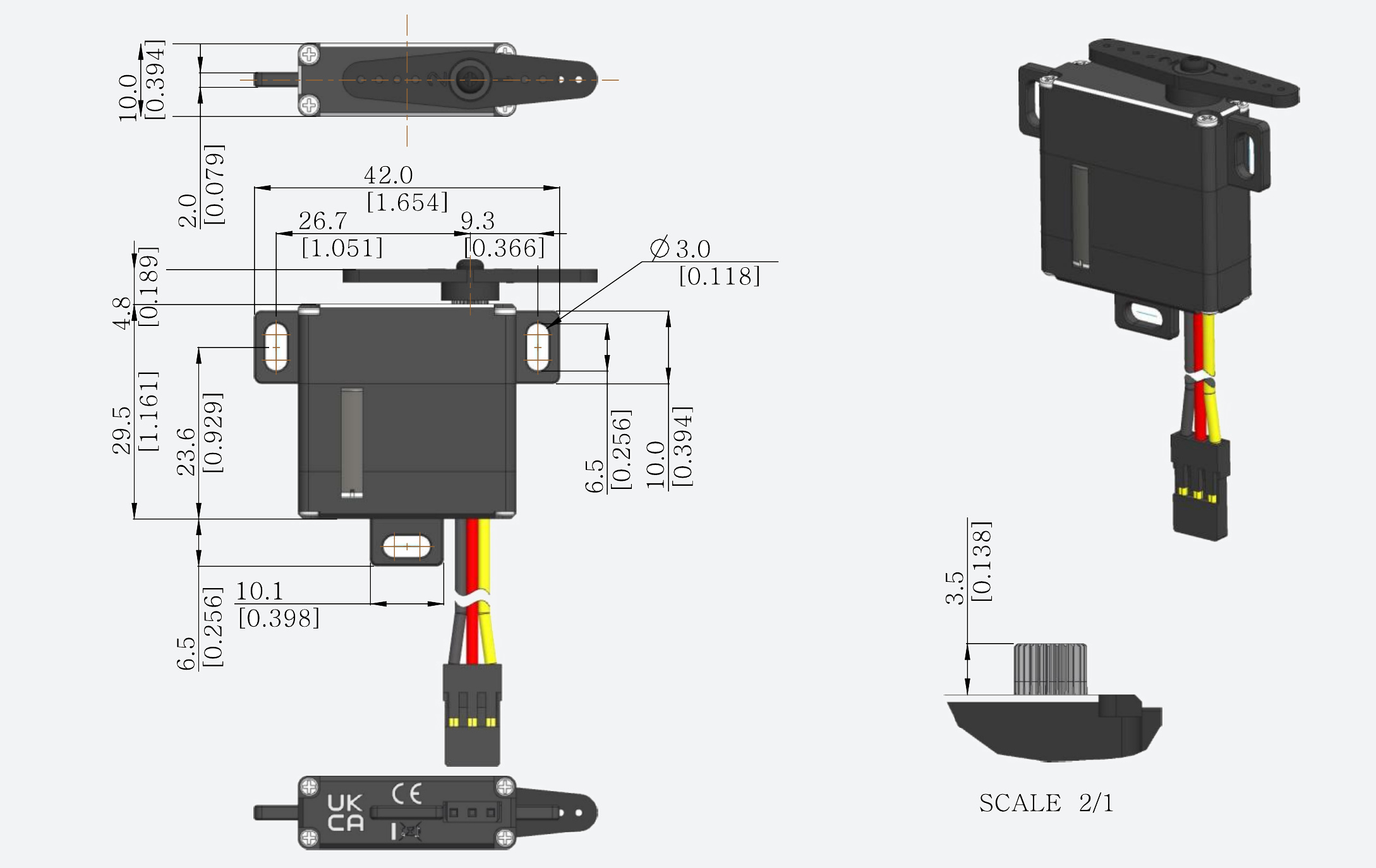

Dimensions (L×W×H)30 × 10 × 37 mm

Motor TypeCoreless

Gear TypeSteel Gears

ProtocolsPWM,TTL

Product Inquiry

Loading 3D model…

Drag to rotate · Scroll to zoom

Product Description

Features • High Resolution 32-bit Programmable Digital Circuit • PWM & TTL Protocol (Standard) <- Manual Link • Magnetic Encoder Position Sensor • Wide Operating Voltage (4.8 ~ 7.4V) • Heavy-Duty, Long Life Motors • IP65 Rated Cases • Customization and Modification Options Available • Custom Connector Options Available Parts and Accessories • Replacement Gear Set • Replacement Case Set • Applicable Horns and Mounting Hardware Programmable Functions • End Point Adjustments • Direction • Fail Safe • Dead Band • Speed (Slower) • Soft Start Rate • Overload Protection • Data Save / Load • Program Reset
