MD950TW-RS485

20mm, Coreless, Wide Voltage, Titanium Gear Actuator(7.4v) / RS-485 Protocol

RS485 Coreless Metal Brush

KGF·CM

Max Torque

0.14

SEC/60°

Speed

GRAMS

Weight

Torque21 ~ 35 kgf·cm

Speed0.23 ~ 0.14 sec/60°

Operating Voltage4.8 ~ 7.4 V

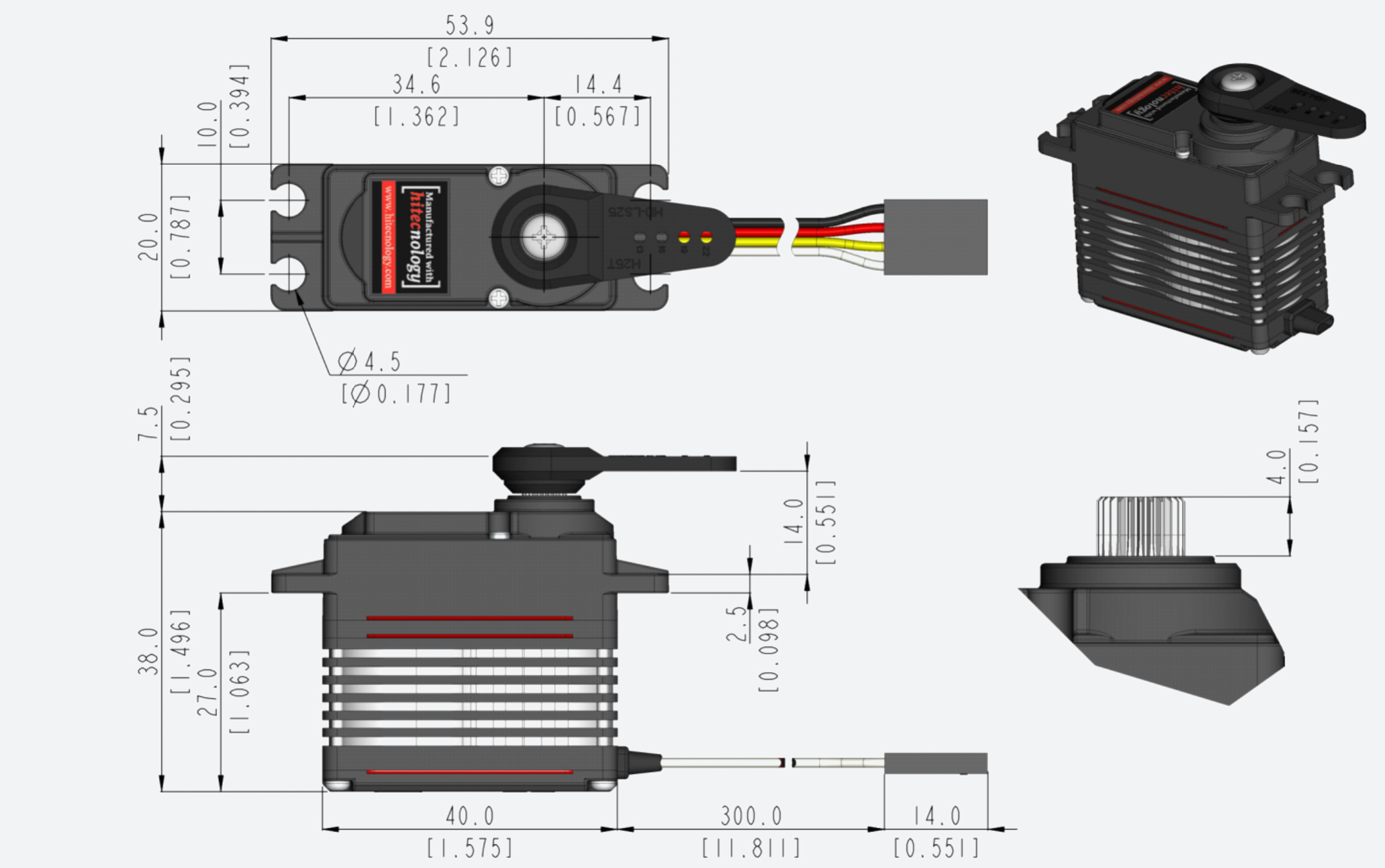

Dimensions (L×W×H)40 × 20 × 38 mm

Motor TypeCoreless Metal Brush

Gear TypeTitanium

ProtocolsRS485

Product Inquiry

Loading 3D model…

Drag to rotate · Scroll to zoom

Product Description

• High Resolution 32-bit Programmable Digital Circuit • RS-485 Protocol <-Manual Link • Magnetic Encoder Position Sensor • Wide Operating Voltage (4.8 ~ 7.4V) • Heavy-Duty, Long Life Motors • IP65 Rated Cases • Customization and Modification Options Available • Custom Connector Options Available Parts and Accessories • Replacement Gear Set • Replacement Case Set • Applicable Horns and Mounting Hardware Programmable Functions • End Point Adjustments • Direction • Fail Safe • Dead Band • Speed (Slower) • Soft Start Rate • Overload Protection • Data Save / Load • Program Reset
