HS-646WP

High Voltage, High Torque, Analog Waterproof

PWM Cored Metal Brush
11.6
KGF·CM
Max Torque
0.17
SEC/60°
Speed
60
GRAMS
Weight
Torque9.6 ~ 11.6 kgf·cm
Speed0.2 ~ 0.17 sec/60°
Operating Voltage6 ~ 7.4 V

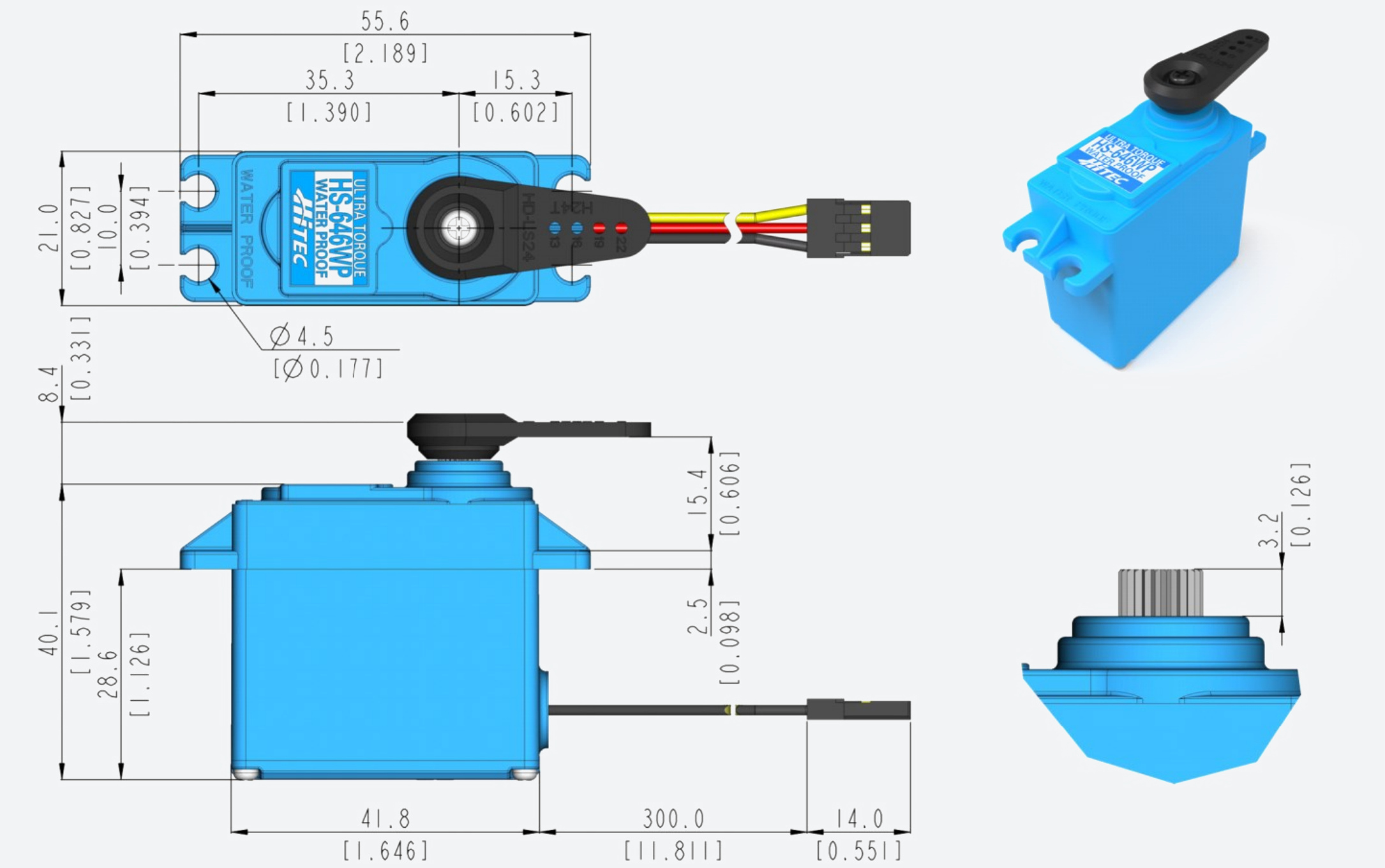

Dimensions (L×W×H)41.8 × 21 × 40 mm
Motor TypeCored Metal Brush
Gear TypeMetal
ProtocolsPWM
Loading 3D model…
Drag to rotate · Scroll to zoom
Product Description
Our waterproof servos have what it takes to keep your radio control vehicle, airplane or robot watertight! With high torque, dual ball bearings and metal gears, our analog waterproof servos have the industry’s first IP67* rating ranking them among the most durable and reliable servos for wet conditions. Whether you are manning your power boat, bashing in the mud, directing your underwater robot, or water landing your 25% plane, the HS-646WP will dependably keep your mind at ease. Features • Industry's First IP67-Rated Waterproof Case * IP = International Protection Code | 6 = Dust Tight | 7 = Immersion up to 1M • Strong Three-Pole Ferrite Motor • Metal Gear Train with MP First Gear • Dual Ball Bearing-Supported Output Shaft • 7.4v 2-Cell LiPo Capability • Programmable Circuitry
Downloads
hs-646wp_3dmodel
ZIP Datasheet
HS-646WP_Specsheet(v2.1)_22L
PDF Datasheet
