HS-1100WP
HS-1100WP
HS-1100WP Click to enlarge

HS-1100WP

Ultra-Heavy Duty, Giant, Waterproof Servo

PWM Cored Carbonl Brush
110
KGF·CM
Max Torque
0.19
SEC/60°
Speed
363
GRAMS
Weight
Torque84 ~ 110 kgf·cm
Speed0.26 ~ 0.19 sec/60°
Operating Voltage12 ~ 15 V

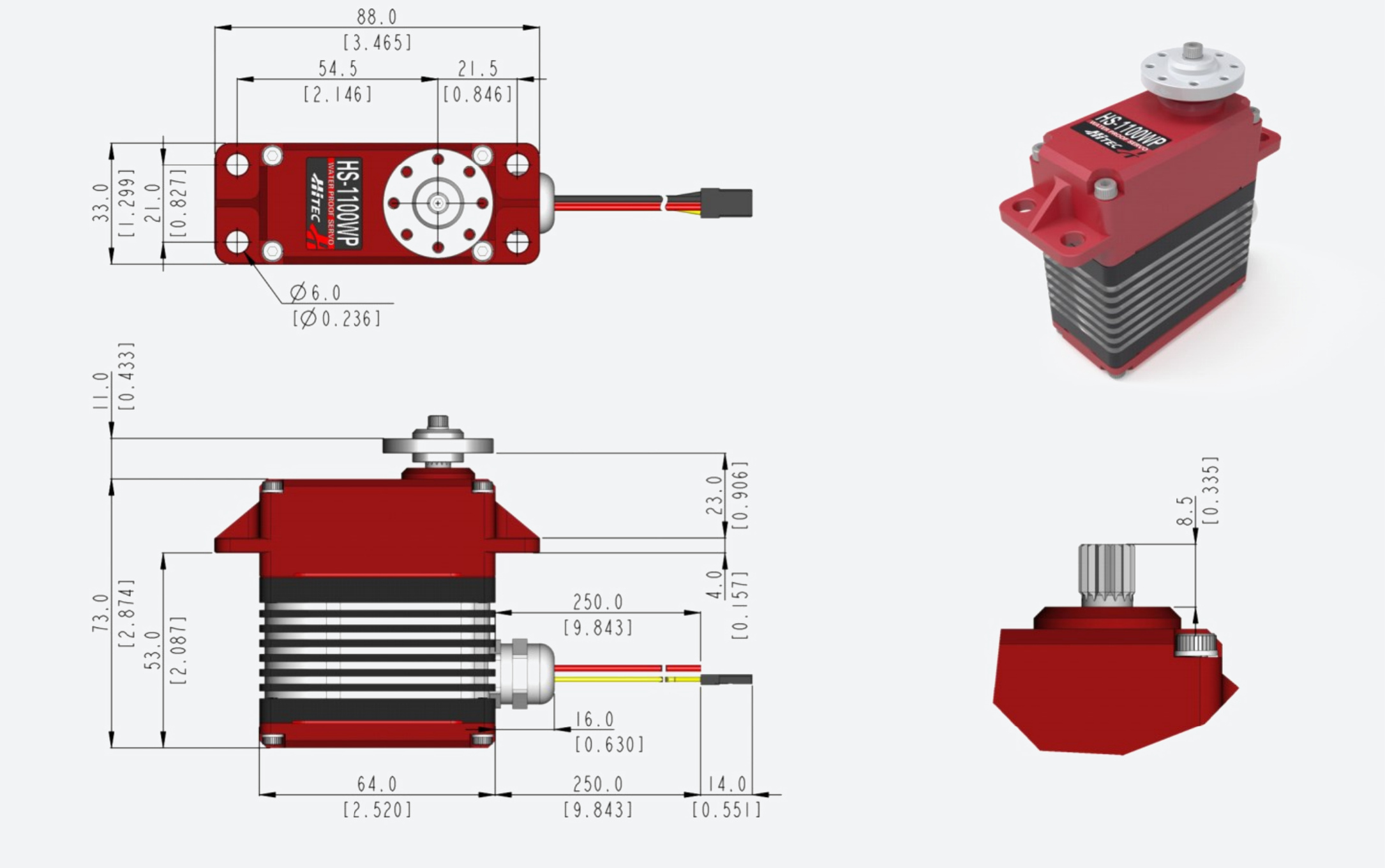

Dimensions (L×W×H)64 × 33 × 73 mm
Motor TypeCored Carbonl Brush
Gear TypeSteel
ProtocolsPWM
Loading 3D model…
Drag to rotate · Scroll to zoom
Product Description
Giant scale servos, watch out! Our HS-1100WP waterproof, heavy-duty digital giant brings out-of-this-world torque performance and strength to all your large scale vehicles, airplanes and robotic projects. Made with impressively durable steel gears, robust EMI-shielded cases and an IP-67* rated code for maximum underwater protection, this addition to our giant servo line has Hitec's unrivaled industrial digital circuitry and engineering. Your world just got BIGGER with the introduction of the HS-1100WP! Features • Non-programmable, Industrial Digital Circuitry • EMI-shielded Cases • *International Protection Code 67 Rating (6=Dust Tight; Complete Protection Against Contact 7) – Immersion up to 1 meter • Durable Steel Gears • 14.8V 2-Cell LiPo Capability • 5-Pole Carbon Brushed Motor
Downloads
HS-1100WP_RC_3dmodel
ZIP Datasheet
HS-1100WP_Specsheet(v2.1)_22L
PDF Datasheet
