HS-45HB
HS-45HB
HS-45HB Click to enlarge

HS-45HB

AGTT Feather Servo

PWM Cored Metal Brush
1.2
KGF·CM
Max Torque
0.12
SEC/60°
Speed
8
GRAMS
Weight
Torque1 ~ 1.2 kgf·cm
Speed0.14 ~ 0.12 sec/60°
Operating Voltage4.8 ~ 6 V
Dimensions (L×W×H)23.6 × 9.8 × 22.4 mm
Motor TypeCored Metal Brush
Gear TypeKarbonite
ProtocolsPWM
Product Inquiry
HS-45HB

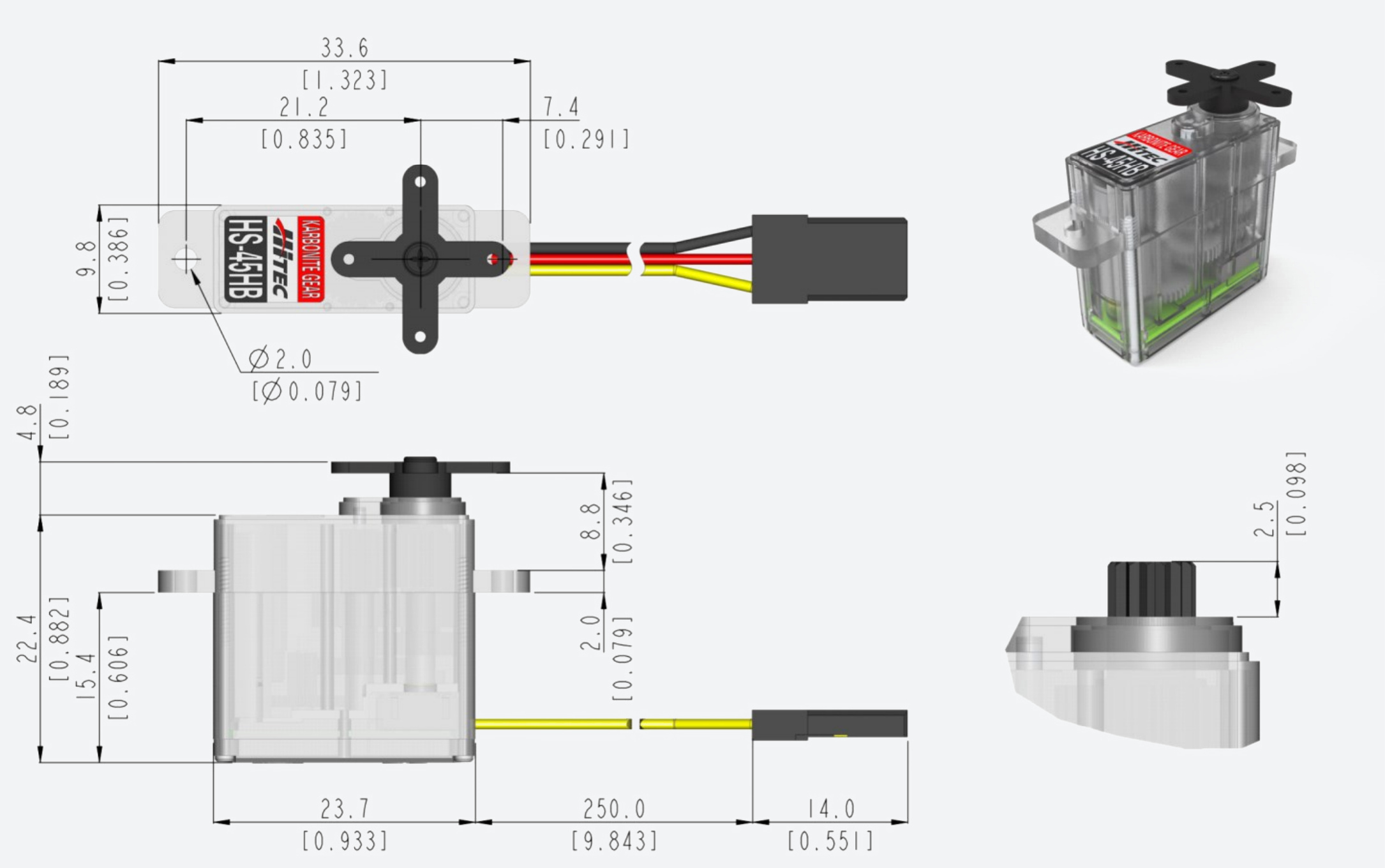

Unit: mm [inch]
Product Description
  Hitec’s HS-45HB offers the economy and durability of our other famous micro servos, but now with a ball bearing supported output shaft and Karbonite gears.
Downloads
HS-45HB_Specsheet(v2.1)_22L
PDF Datasheet
