DB777WP
DB777WP
DB777WP Click to enlarge

DB777WP

BLDC Low Profile Servo with Full Metal Waterproof Case

PWM TTL Brushless
11
KGF·CM
Max Torque
0.06
SEC/60°
Speed
68
GRAMS
Weight
Torque8 ~ 11 kgf·cm
Speed0.08 ~ 0.06 sec/60°
Operating Voltage6 ~ 7.4 V

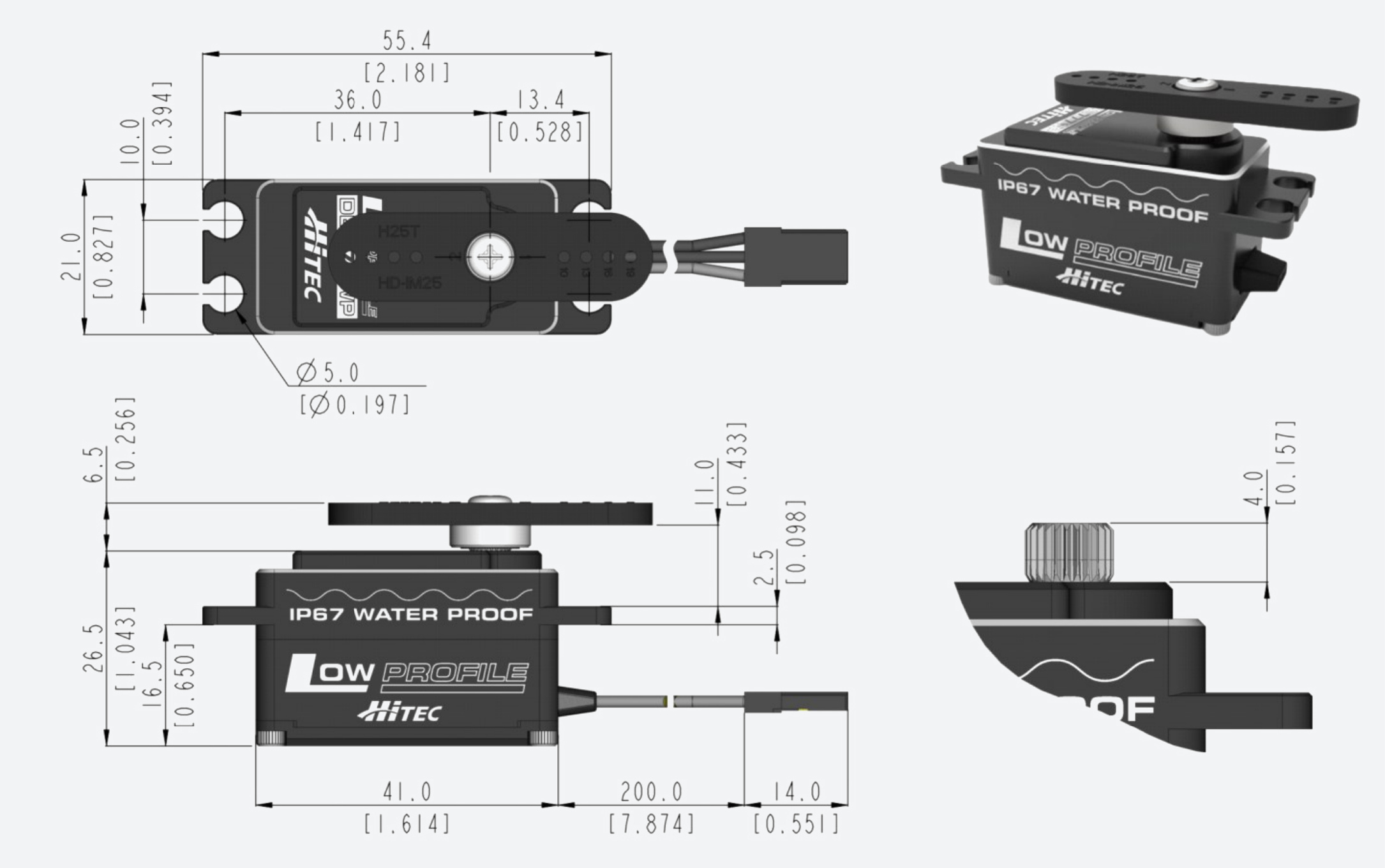

Dimensions (L×W×H)41 × 21 × 26.5 mm
Motor TypeBrushless
Gear TypeMetal
ProtocolsPWM,TTL
Product Inquiry
Loading 3D model…
Drag to rotate · Scroll to zoom
Product Description
This is the servo to scratch the customer’s itches who always desires this low profile size servo with all of Hitec’s cutting edge technologies. We present our new fastest Low Profile DB777WP servo with Full Metal Waterproof Case.
Downloads
DB777WP_3dmode
ZIP Datasheet
DB777WP_Specsheet(v2.1)_22G
PDF Datasheet
More Products
View All →

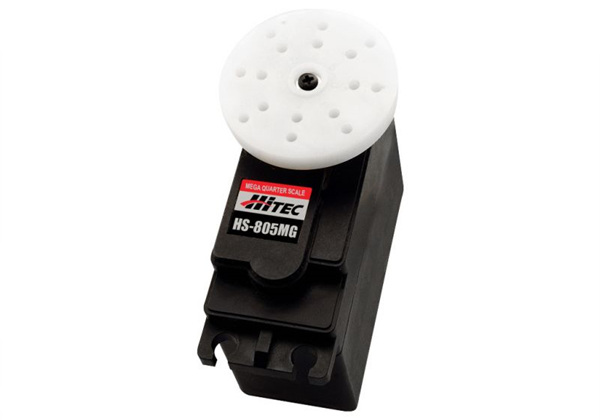

HS-805MG
