HS-75BB

Retract Servo

PWM Cored Metal Brush

8.2

KGF·CM

Max Torque

0.34

SEC/60°

Speed

GRAMS

Weight

Torque6.6 ~ 8.2 kgf·cm

Speed0.45 ~ 0.34 sec/60°

Operating Voltage4.8 ~ 6 V

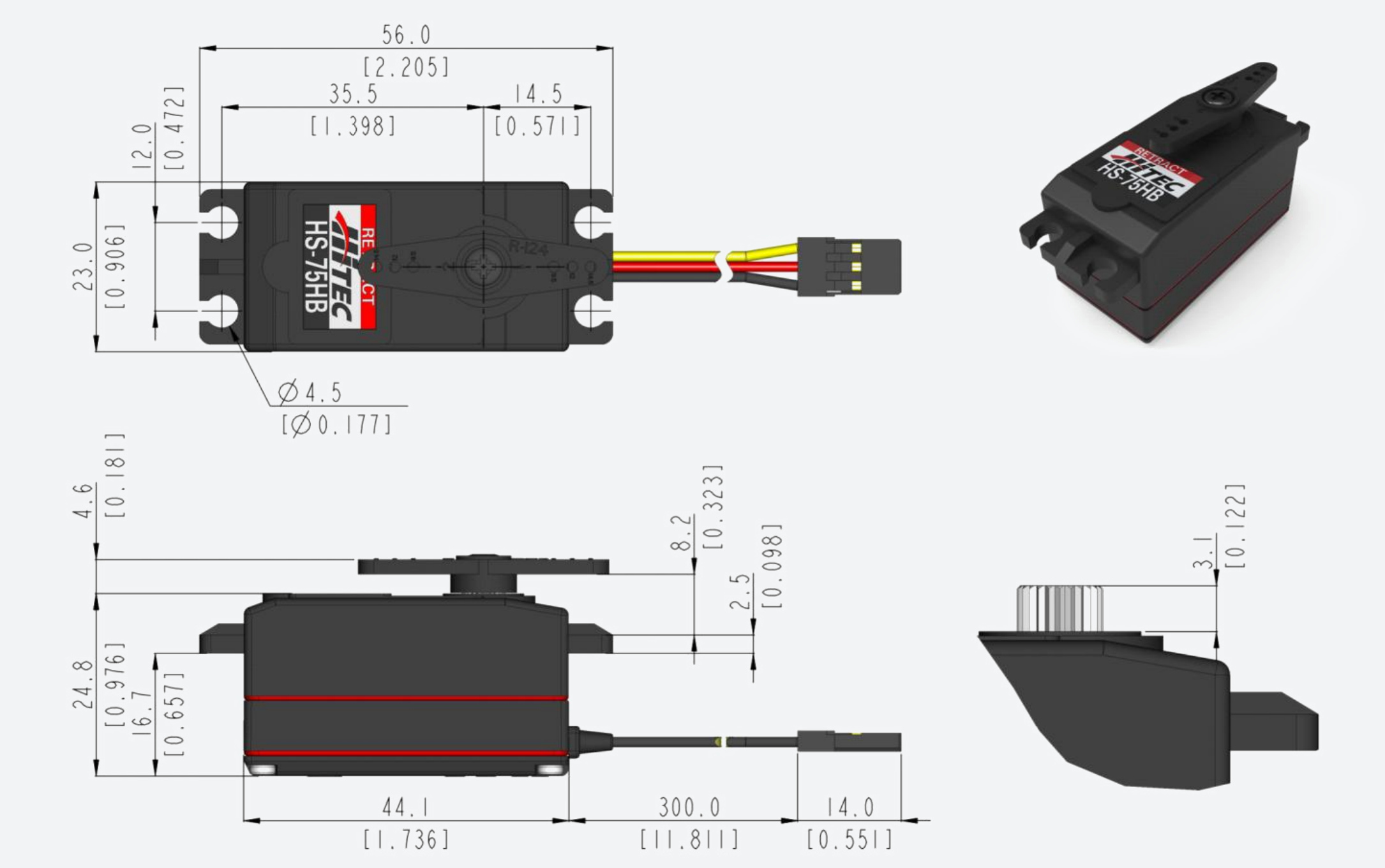

Dimensions (L×W×H)44 × 23 × 25 mm

Motor TypeCored Metal Brush

Gear Type1 Metal & 4 Resin Gears

ProtocolsPWM

Product Inquiry

Loading 3D model…

Drag to rotate · Scroll to zoom

Product Description

With its low profile design, strong torque and precision movement, the HS-75BB is a great choice to move your retract gear in a realistic manner that you need. Note, this is a retract or “bang bang” servo and only travels from one end to the other (180 degrees). If you require a proportional servo this size, use the Hitec HS-77BB. Features • Low Profile Design • Durable Nylon Gears • Top Ball Bearings • Strong Torque and Precise Movement • Slow Speed for Realistic Retract Action
