HS-77BB

Low Profile Servo

PWM Cored Metal Brush

5.5

KGF·CM

Max Torque

0.14

SEC/60°

Speed

GRAMS

Weight

Torque4.4 ~ 5.5 kgf·cm

Speed0.18 ~ 0.14 sec/60°

Operating Voltage4.8 ~ 6 V

Dimensions (L×W×H)44 × 23 × 25 mm

Motor TypeCored Metal Brush

Gear Type1 Metal & 4 Resin Gears

ProtocolsPWM

Product Inquiry

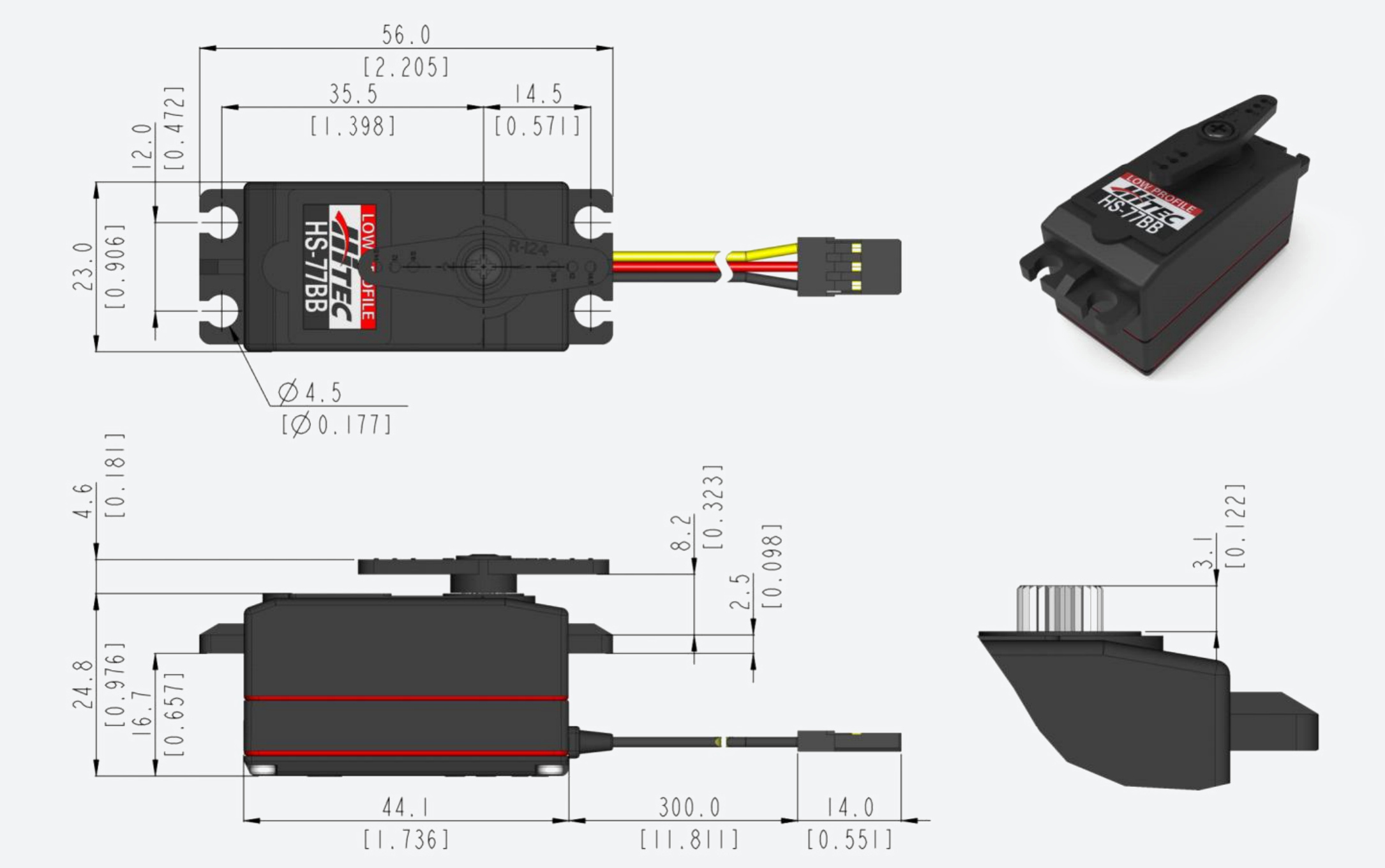

Unit: mm [inch]

Product Description

With its low profile design and strong standing torque, the HS-77BB is a great choice for wing or tail mounting in aircrafts up to 1.20 size. Submarines, boats, cars and trucks can also benefit from this servo’s strength and compact size. Features • Low Profile Compact Design • High Torque Three-Pole Ferrite Motor • Durable Nylon Gears • Top Ball Bearings

Downloads

HS-77BB_Specsheet(v2.1_02)_25G

PDF Datasheet
