HS-755MG

Metal Gear, Giant Scale Servo

PWM Cored Metal Brush

14.4

KGF·CM

Max Torque

0.23

SEC/60°

Speed

117

GRAMS

Weight

Torque12 ~ 14.4 kgf·cm

Speed0.28 ~ 0.23 sec/60°

Operating Voltage4.8 ~ 6 V

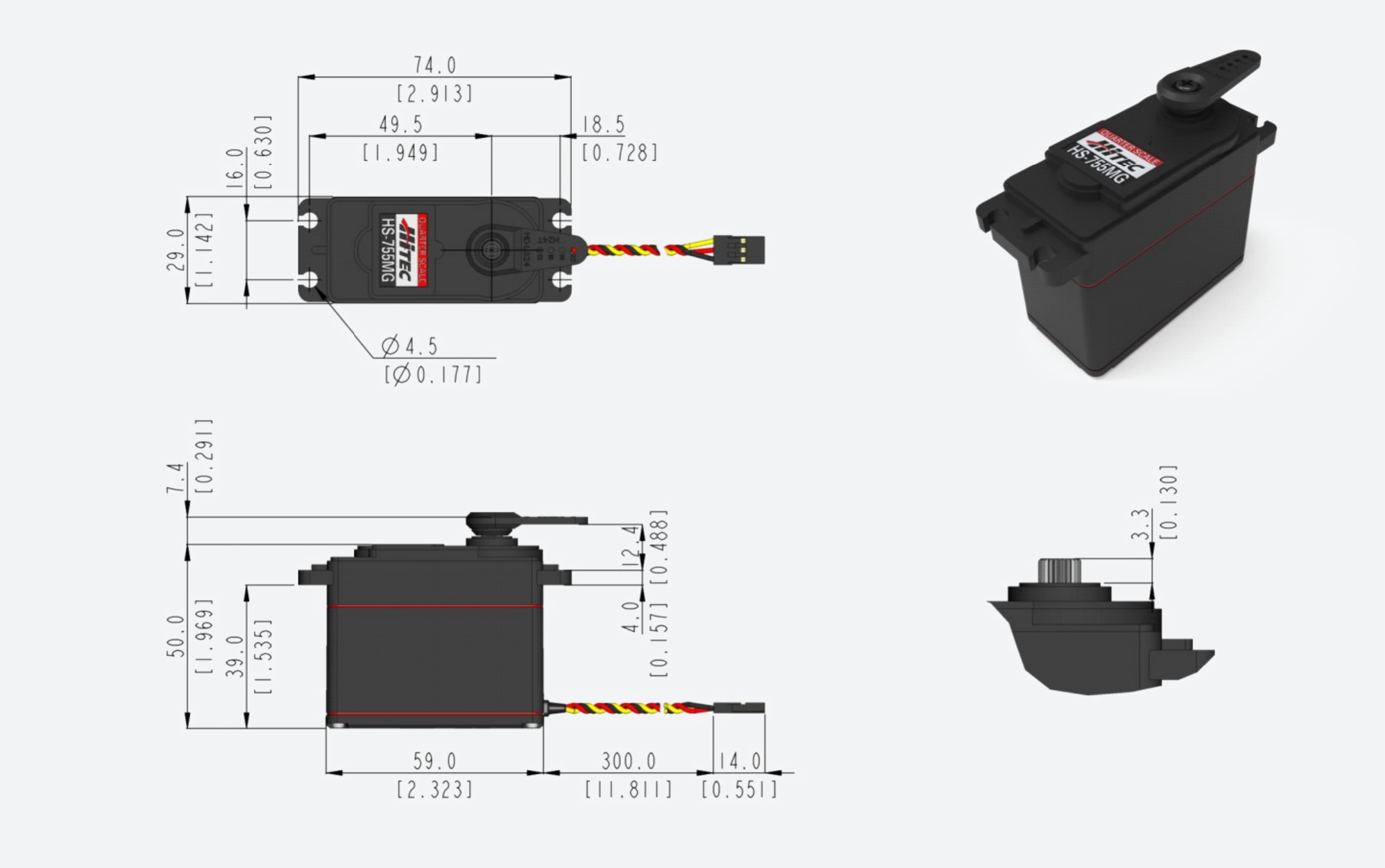

Dimensions (L×W×H)59 × 29 × 50 mm

Motor TypeCored Metal Brush

Gear TypeMetal

ProtocolsPWM

Product Inquiry

Loading 3D model…

Drag to rotate · Scroll to zoom

Product Description

Hitec’s expansive line-up of servos include the HS-755HB and HS-755MG “giant scale” servos offered with either the revolutionary Karbonite™ gears or metal gears. Both are perfect for larger R/C applications and feature dual ball bearings with a water and dust resistant case. The powerful HS-755MG delivers a whopping 200 oz./in. of torque and the HS-755HB delivers 183 oz./in. of torque at 6 volts. Features • Economical Choice in a Giant, Metal Gear Analog Servo • Durable Three-Pole Ferrite Motor • Durable Metal Gears • Dual Ball Bearings • Water and Dust-Resistant Case
