HS-5495BH
HS-5495BH
HS-5495BH Click to enlarge

HS-5495BH

HV Digital Karbonite Gear Sport Servo

PWM Cored Metal Brush
7.5
KGF·CM
Max Torque
0.15
SEC/60°
Speed
45
GRAMS
Weight
Torque6.4 ~ 7.5 kgf·cm
Speed0.17 ~ 0.15 sec/60°
Operating Voltage6 ~ 7.4 V

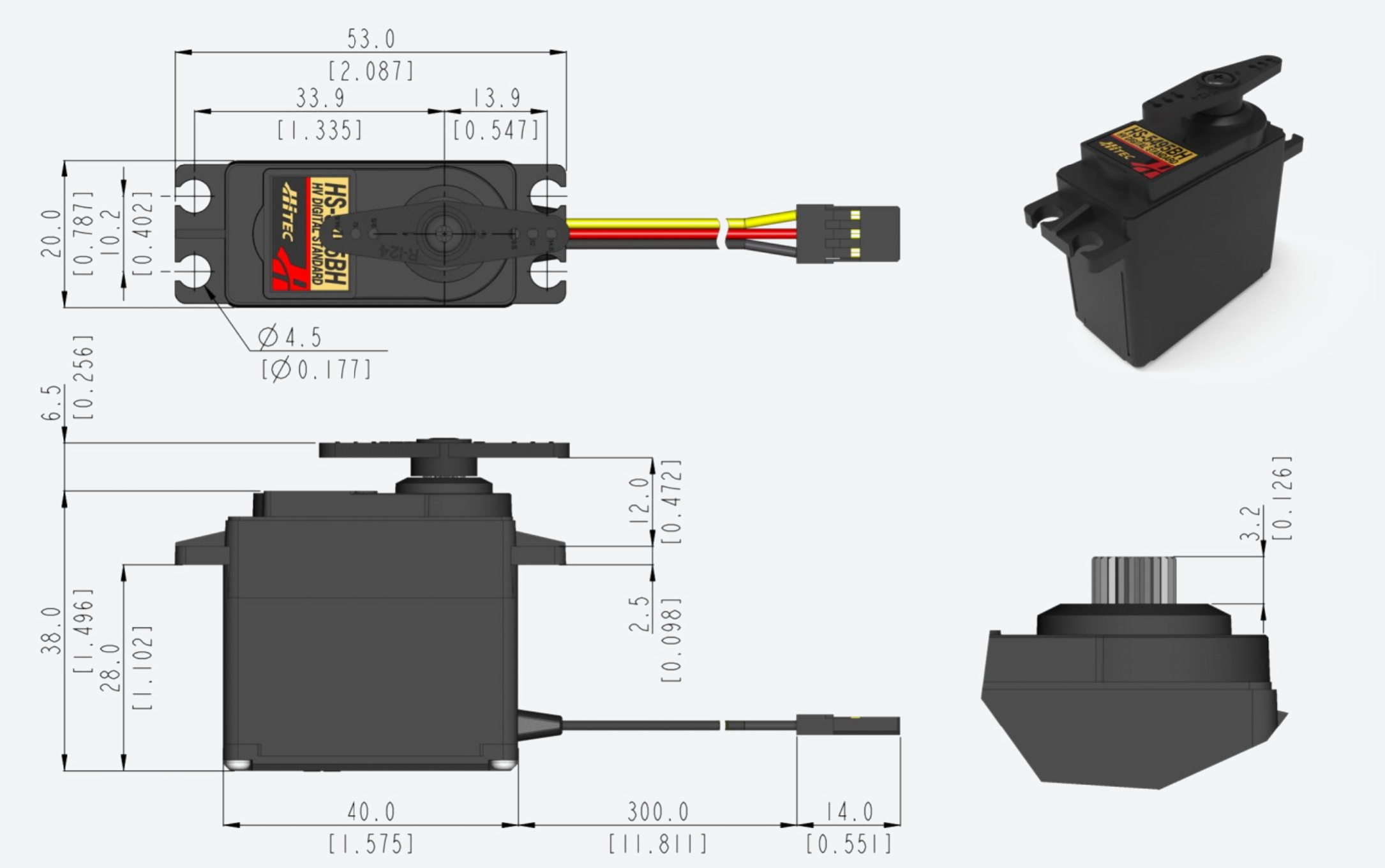

Dimensions (L×W×H)39.8 × 19.8 × 38 mm
Motor TypeCored Metal Brush
Gear TypeKarbonite
ProtocolsPWM
Loading 3D model…
Drag to rotate · Scroll to zoom
Product Description
At Hitec, we believe in developing the highest quality servos in the market at an affordable price. That philosophy stands true with the economical HS-5495BH digital sport servo. Based on the popular HS-5485HB, the HS-5495BH's heavy-duty Karbonite gears are the perfect match for sport airplanes up to 25% scale weighing under 12 pounds. With 7.4 volt, 2-cell LiPo battery capability, The HS-5495BH delivers the power you need at a price you can feel good about! Trust your hobby to Hitec. The upgraded version of this servo is now available : D485HW   Features • Dead Band Width • Direction of Rotation • Speed of Rotation (slower) • End Points • Neutral Points • Fail Safe On/Off • Fail Safe Point Programmable Functions • End Point Adjustments • Direction • Fail Safe • Dead Band • Speed (Slower) • Data Save / Load • Program Reset
Downloads
hs-5495hb_3dmodl
ZIP Datasheet
HS-5495BH_Specsheet(v2.1)_22K
PDF Datasheet
