HS-5585MH
HS-5585MH
HS-5585MH Click to enlarge

HS-5585MH

Economical, High Voltage, High Torque, Coreless, Metal Gear Digital Sport Servo

PWM Coreless Metal Brush
17
KGF·CM
Max Torque
0.14
SEC/60°
Speed
59
GRAMS
Weight
Torque14 ~ 17 kgf·cm
Speed0.17 ~ 0.14 sec/60°
Operating Voltage6 ~ 7.4 V

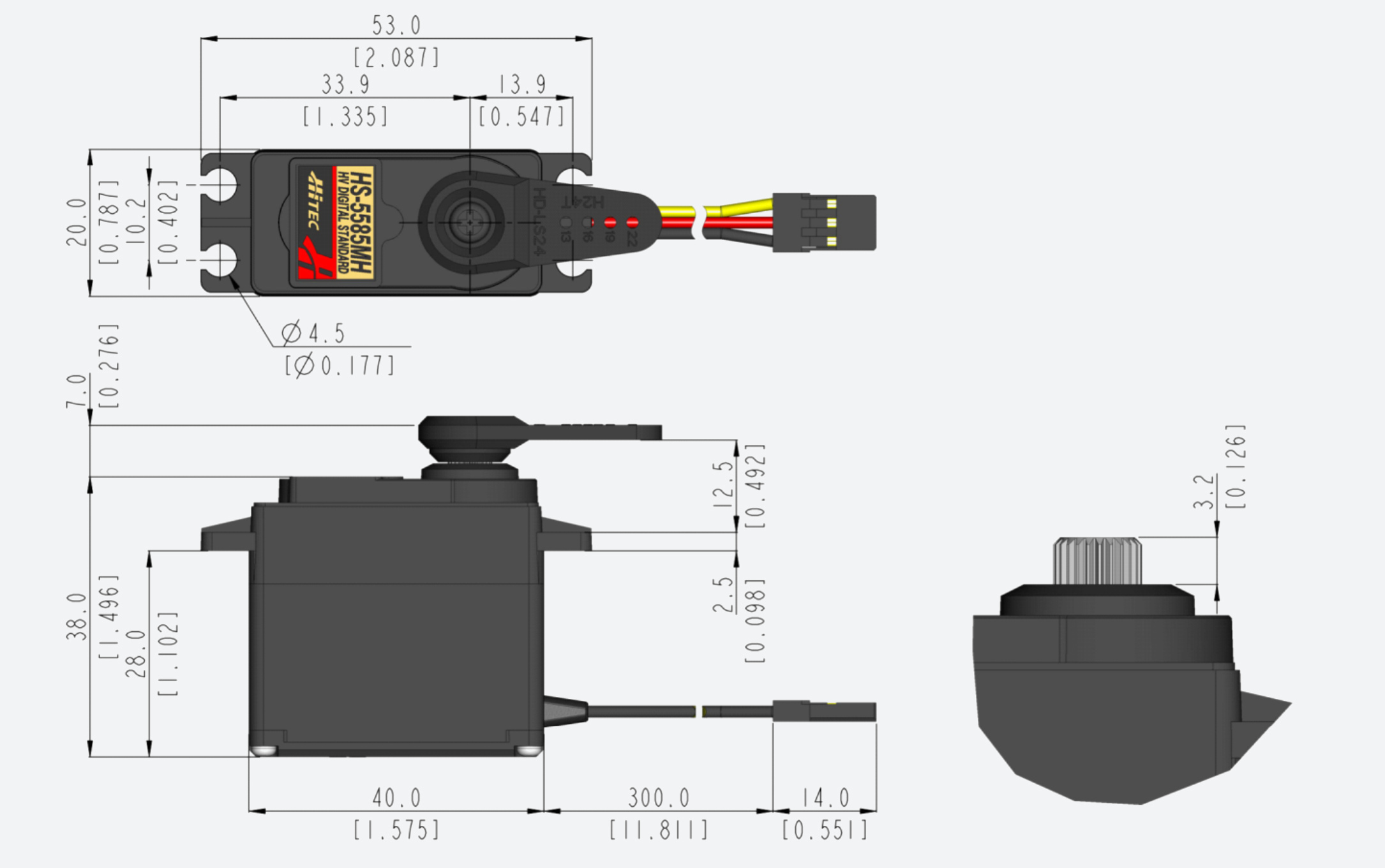

Dimensions (L×W×H)39.8 × 19.8 × 38 mm
Motor TypeCoreless Metal Brush
Gear TypeMetal
ProtocolsPWM
Loading 3D model…
Drag to rotate · Scroll to zoom
Product Description
Increase your performance not your budget with the high voltage, high torque, digital HS-5585MH. Featuring a high performance coreless motor, heavy-duty metal gears and dual ball bearings, the HS-5565MH is rated for  7.4 volt, 2S LiPo operation.  The HS-5585MH, supplies your 1/10th monster trucks to 1/8th scale buggies and truggies and high performance airplanes up to 35 percent with outstanding strength and precision. Features • Our Most Economically Priced High Torque Digital Coreless Servo • Quick and Precise Coreless Motor • Heavy Duty Metal Gears • 7.4v 2-Cell LiPo Capability • Standard Programmable Digital Circuit Programmable Functions • End Point Adjustments • Direction • Fail Safe • Dead Band • Speed (Slower) • Data Save / Load • Program Reset
Downloads
HS-5585MH_3dmodl
ZIP Datasheet
HS-5585MH_Specsheet(v2.1)_22K
PDF Datasheet
