Standard Linear Waterproof
Model SPEED RANGE (SEC/60°) TORQUE RANGE (KG•CM) DIMENSION (MM) WEIGHT(G) Protocol (Possibility)
MIN MAX MIN MAX L W H PWM TTL RS485 CAN DRONE CAN

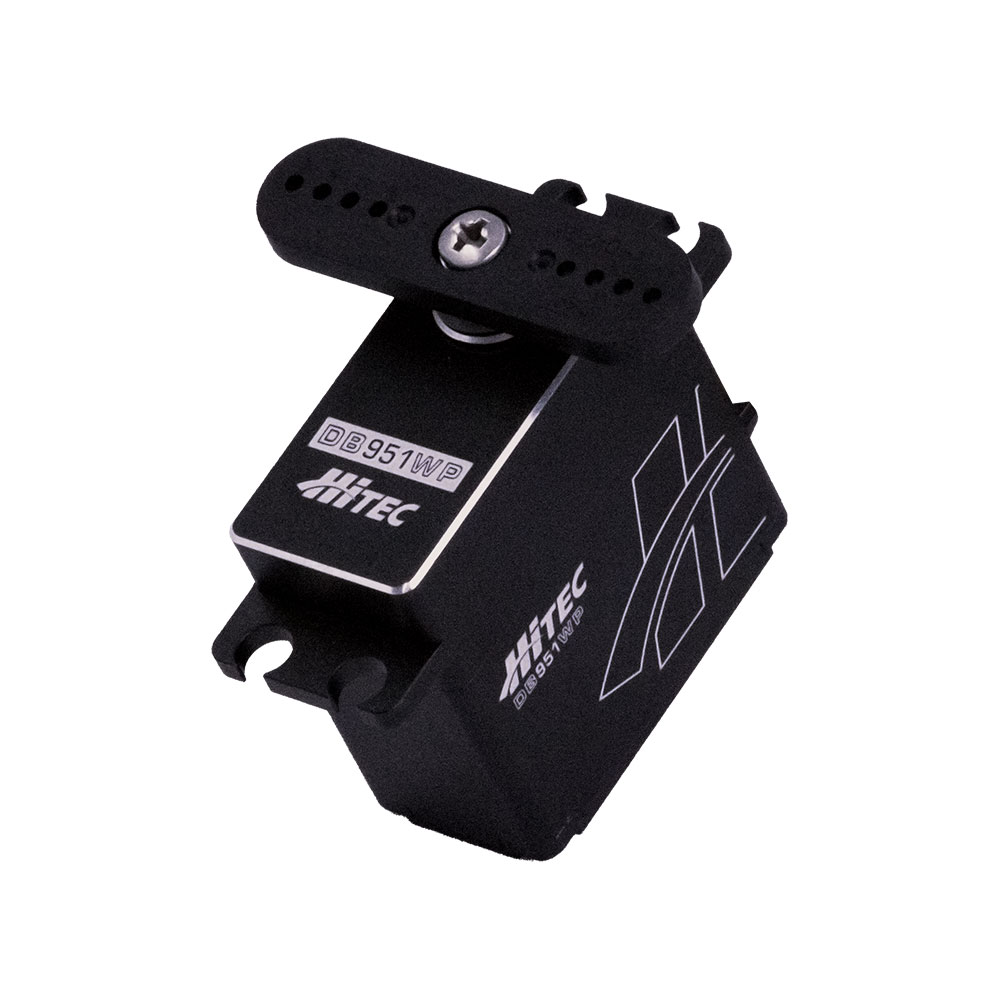

DB951WP 0.12 0.1 38 38 40 20 39 90 PWM TTL
DB961WP 0.18 0.15 55 55 40 20 39 90 PWM TTL
SG50BL-CAN-24V-CIRCULAR-CONN 0.5 0.5 520 520 100 50 105 1450 CAN DRONE CAN
SG33BLT-CAN-24V-GLAND-CABLE 0.185 0.185 147 147 64 33 90 500 CAN DRONE CAN
SG33BLT-CAN-24V-CIRCULAR-CONN 0.185 0.185 147 147 64 33 90 480 CAN DRONE CAN
SG33BLT-24V-DB9SUB-CONN 0.185 0.185 147 147 64 33 95 480 PWM TTL RS485
SG33BLT-CAN-12V-GLAND-CABLE 0.185 0.185 147 147 64 33 90 500 CAN DRONE CAN
SG33BLT-CAN-12V-CIRCULAR-CONN 0.185 0.185 147 147 64 33 90 480 CAN DRONE CAN
SG33BLT-12V-DB9SUB-CONN 0.185 0.185 147 147 64 33 95 480 PWM TTL RS485
SG20BL-CAN-12V-CIRCULAR-CONN 0.13 0.13 65 65 45 20 75 170 CAN DRONE CAN
SG15BL-CAN-12V-CIRCULAR-CONN 0.123 0.123 11 11 31 15 50 40 CAN DRONE CAN
MD845WP 0.26 0.17 32.5 50 66 32 62 227 PWM TTL
MD980TW 0.21 0.17 36 44 43.8 22.4 40 79 PWM TTL
MD950TW-UAVCAN 0.23 0.14 21 35 40 20 38 68 DRONE CAN
MD950TW-CAN 0.23 0.14 21 35 40 20 38 68 CAN
MD950TW-RS485 0.23 0.14 21 35 40 20 38 68 RS485
MD485HW 0.2 0.15 4.8 7.4 39.8 19.8 38 45 PWM TTL
MD245MW-UAVCAN 0.17 0.11 4.2 6.4 32.4 16.8 32.8 34 DRONE CAN
MD245MW-CAN 0.17 0.11 4.2 6.4 32.4 16.8 32.8 34 CAN
MD245MW-RS485 0.17 0.11 4.2 6.4 32.4 16.8 32.8 34 RS485
MD245MW 0.17 0.11 4.2 6.4 32.4 16.8 32.8 34 PWM TTL
MD250MW-UAVCAN 0.2 0.13 4.9 7.5 35 15 33 31 DRONE CAN
MD250MW-CAN 0.2 0.13 4.9 7.5 35 15 33 31 CAN
MD250MW-RS485 0.2 0.13 4.9 7.5 35 15 33 31 RS485
MD250MW 0.2 0.13 4.9 7.5 35 15 33 31 PWM TTL
MD145SW-UAVCAN 0.21 0.14 3.9 6 30 10 37 27.7 DRONE CAN
MD145SW-CAN 0.21 0.14 3.9 6 30 10 37 27.7 CAN
MD145SW 0.21 0.14 3.9 6 30 10 37 27.7 PWM TTL
MD89MW-UAVCAN 0.17 0.11 4.8 7.4 29 13 30 25 DRONE CAN
MD89MW-CAN 0.17 0.11 4.8 7.4 29 13 30 25 CAN
MD89MW-RS485 0.17 0.11 4.8 7.4 29 13 30 25 RS485
MD89MW 0.17 0.11 4.8 7.4 29 13 30 25 PWM TTL
MD85MG-UAVCAN 0.17 0.13 3.6 4.3 29 13 30 25 DRONE CAN
MD85MG-CAN 0.17 0.13 3.6 4.3 29 13 30 25 CAN
MD85MG 0.17 0.13 3.6 4.3 29 13 30 25 PWM TTL
MD70MH-UAVCAN 0.15 0.12 3.1 3.8 23.6 11.6 30 14.1 DRONE CAN
MD70MH-CAN 0.15 0.12 3.1 3.8 23.6 11.6 30 14.1 CAN
MD70MH 0.15 0.12 3.1 3.8 23.6 11.6 30 14.1 PWM TTL
MD65MG-UAVCAN 0.11 0.14 1.8 2.2 23.6 11.6 25.8 12 DRONE CAN
MD65MG-CAN 0.11 0.14 1.8 2.2 23.6 11.6 25.8 12 CAN
MD65MG-RS485 0.11 0.14 1.8 2.2 23.6 11.6 25.8 12 RS485
MD65MG 0.11 0.14 1.8 2.2 23.6 11.6 25.8 12 PWM TTL
HS-1100WP 0.26 0.19 84 110 64 33 73 363 PWM
HS-1005SGT 0.26 0.19 84 110 64 33 73 363 PWM
D845WP 0.26 0.17 32.5 50 66 32 62 227 PWM TTL
D840WP 0.17 0.11 19 30 66 32 62 227 PWM TTL
D980TW 0.28 0.17 26 44 43.8 22.4 40 78.2 PWM TTL
D951TW 0.23 0.14 21 35 40 20 38 80 PWM TTL
D946TW 0.16 0.1 14 23 40 20 38 80 PWM TTL
D941TW 0.11 0.07 10 16.5 40 20 38 80 PWM TTL
D950TW 0.23 0.14 21 35 40 20 38 68 PWM TTL
D945TW 0.16 0.1 14 23 40 20 38 68 PWM TTL
D940TW 0.11 0.07 10 16.5 40 20 38 80 PWM TTL
D956WP 0.19 0.12 16 24.5 40 20 37 72.4 PWM TTL
D955TW 0.19 0.12 18 29 40 20 37 66 PWM TTL
D954SW 0.19 0.12 18 29 40 20 37 66 PWM TTL
D930SW 0.105 0.07 8 13 40 20 37 66 PWM TTL
D646WP 0.24 0.16 7.5 11.6 41.8 21 40 61 PWM TTL
D645MW 0.28 0.17 8.3 12.9 40.6 19.8 37.8 60 PWM TTL
D625MW 0.2 0.13 6.3 10 40.6 19.8 37.8 60 PWM TTL
D485HW 0.2 0.15 5.2 7.5 39.8 19.8 38 45 PWM TTL
DB778WP 0.12 0.1 18 18 41 21 26.5 66 PWM TTL
DB777WP 0.08 0.06 8 11 41 21 26.5 68 PWM TTL
D777MG 0.09 0.07 5.2 6.5 40.4 21 25.4 45 PWM TTL
D145SW 0.21 0.14 3.9 6 30 10 37 24 PWM TTL
D89MW 0.17 0.11 5.3 7.4 29 13 30 25 PWM TTL
D85MG 0.17 0.13 3.6 4.3 29 13 30 24 PWM TTL
MDR845WP 0.26 0.17 32.5 50 66 32 62 227 PWM TTL
HSR-M9382TH 0.17 0.14 34 34 40 20 38 72 PWM
HSR-2645CR 0.217 0.138 8 12 40.6 19.8 37.8 53 PWM

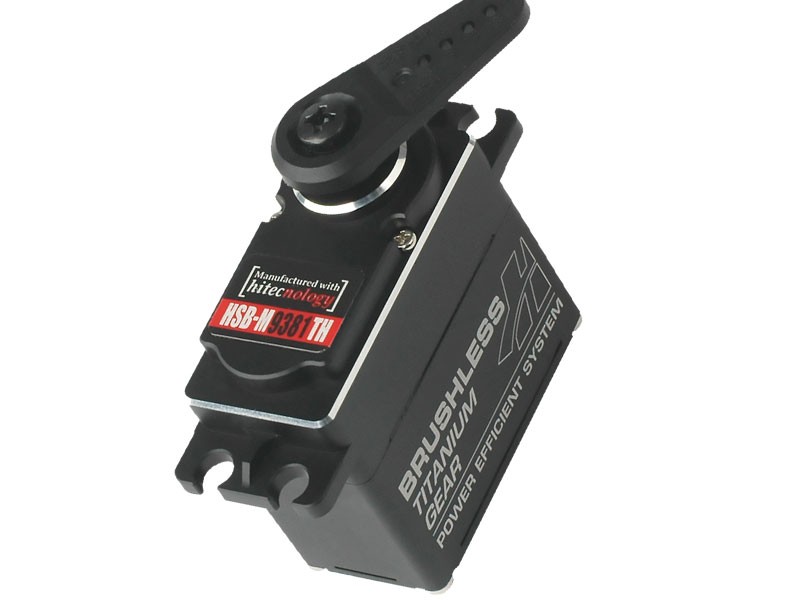

HSB-M9381TH 0.17 0.14 34 34 40 20 38 78 PWM
HSB-9381TH 0.17 0.14 34 34 40 20 38 79 PWM
HSB-9380TH 0.17 0.14 34 34 40 20 38 68 PWM
HSB-9370TH 0.12 0.1 25 25 40 20 38 68 PWM
HSB-9360TH 0.075 0.06 17 17 40 20 38 68 PWM
HSB-9485SH 0.18 0.15 23 23 40 20 37 62 PWM
HSB-9475SH 0.13 0.1 19.4 19.4 40 20 37 62 PWM
HSB-9465SH 0.09 0.07 13.5 13.5 40 20 37 65 PWM
HS-8775MG 0.12 0.1 7.2 9 40.4 21 25.4 45 PWM
HS-M7990TH 0.21 0.17 36 44 43.8 22.4 40 79 PWM
HS-7980TH 0.21 0.17 36 44 43.8 22.4 40 78.2 PWM
HS-7955TG 0.19 0.15 18 24 40 20 37 65 PWM
HS-7954SH 0.15 0.12 24 29 40 20 37 68.0 PWM
HS-7950TH 0.15 0.13 29 35 40 20 38 68 PWM
HS-7945TH 0.12 0.1 18 23 40 20 38 68 PWM
HS-7940TH 0.07 0.06 13 16 40 20 38 68 PWM
HS-7985MG 0.16 0.13 10.4 12.4 40 20 37 62 PWM
HS-7245MH 0.13 0.11 5.2 6.4 32.4 16.8 32.8 34 PWM
HS-7235MH 0.09 0.08 3.6 4.4 32.4 16.8 32.8 34 PWM
HS-7115TH 0.12 0.1 3.2 3.9 26 8 38 20 PWM
HS-5765MH 0.16 0.13 20 25 59 29 52 172.3 PWM
HS-5805MG 0.19 0.14 19.8 24.7 66 30 57.6 197 PWM
HS-5685MH 0.2 0.17 11.3 12.9 40.6 19.8 37.8 60 PWM
HS-5665MH 0.16 0.14 8.8 10 40.6 17.8 37.8 60 PWM
HS-5646WP 0.2 0.18 11.3 12.9 41.8 21 40 61 PWM
HS-5645MG 0.23 0.18 10.3 12.1 40.6 19.8 37.8 60 PWM
HS-5625MG 0.17 0.14 7.9 9.4 40.6 19.8 37.8 60 PWM
HS-5585MH 0.17 0.14 14 17 39.8 19.8 38 59 PWM
HS-5565MH 0.11 0.09 11 14 39.8 19.8 38 59 PWM
HS-5496MH 0.18 0.15 6 7.2 39.8 19.8 38 52 PWM
HS-5495BH 0.17 0.15 6.4 7.5 39.8 19.8 38 45 PWM

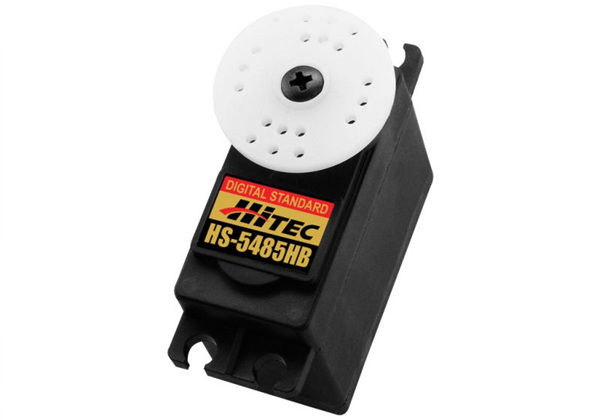

HS-5485HB 0.2 0.17 5.2 6.4 39.8 19.8 38 45 PWM

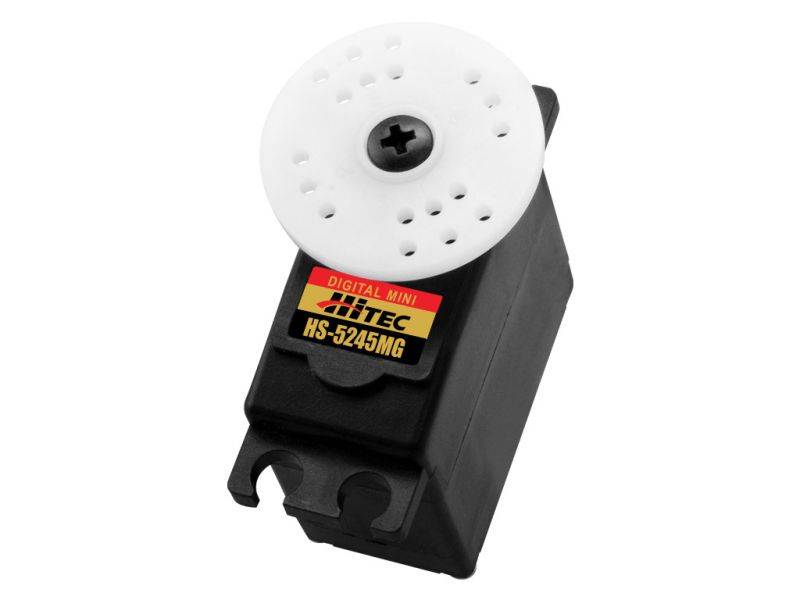

HS-5245MG 0.15 0.12 4.4 5.5 32.4 16.8 30.8 32 PWM
HS-5125MG 0.17 0.13 3 3.5 30 10 34 24 PWM
HS-5087MH 0.17 0.13 3.6 4.3 29 13 30 21.9 PWM
HS-5086WP 0.18 0.15 3 3.6 31 15.2 31 28.5 PWM
HS-5085MG 0.17 0.13 3.6 4.3 29 13 30 21.9 PWM
HS-5070MH 0.15 0.12 3.1 3.8 23.6 11.6 29 12.7 PWM
HS-5065MG 0.14 0.11 1.8 2.2 23.6 11.6 2.4 11.9 PWM

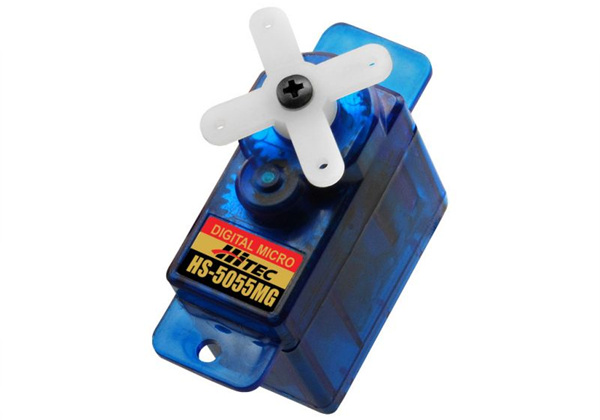

HS-5055MG 0.2 0.17 1.3 1.6 22.8 11.6 24 9.5 PWM
HS-815BB 0.19 0.14 19.8 24.7 66 30 57.6 152 PWM
HS-805MG 0.19 0.14 19.8 24.7 66 30 57.6 197 PWM
HS-805BB 0.19 0.14 19.8 24.7 66 30 57.6 152 PWM
HS-785HB 0.28 0.23 11 13.2 59 29 50 108.8 PWM
HS-765HB 0.28 0.23 11 13.2 59 29 50 104.8 PWM
HS-755MG 0.28 0.23 12 14.4 59 29 50 117 PWM
HS-755HB 0.28 0.23 11 13.2 59 29 50 97.5 PWM
HS-646WP 0.2 0.17 9.6 11.6 41.8 21 40 60 PWM
HS-645MG 0.24 0.2 7.7 9.6 40.6 19.8 37.8 55.2 PWM
HS-635HB 0.18 0.15 6.4 7.8 39.8 19.8 38.8 52.1 PWM
HS-625MG 0.18 0.15 5.5 6.8 40.6 19.8 37.8 55.2 PWM
HS-485HB 0.22 0.18 4.8 6 39.8 19.8 38 45 PWM
HS-430BH 0.16 0.14 4.1 5 40.6 19.8 36.6 45.5 PWM
HS-425BB 0.21 0.16 3.1 3.9 40.6 19.8 36.6 45.5 PWM
HS-422 0.21 0.16 3.1 3.9 40.6 19.8 36.6 45.5 PWM

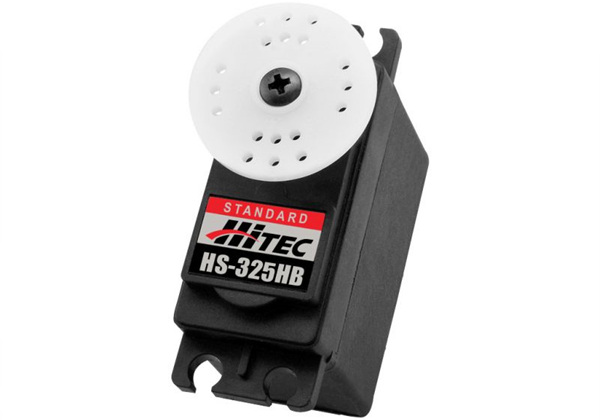

HS-325HB 0.19 0.15 3 3.7 40 20 36.5 43 PWM
HS-323HD 0.21 0.17 2.6 3.2 40 20 36.5 44 PWM
HS-322HD 0.19 0.15 3 3.7 40 20 36.5 43 PWM
HS-312 0.21 0.17 2.6 3.2 40 20 36.5 43 PWM
HS-311 0.19 0.15 3 3.7 40 20 36.5 43 PWM
HS-77BB 0.18 0.14 4.4 5.5 44 23 25 35 PWM
HS-75BB 0.45 0.34 6.6 8.2 44 23 25 35 PWM
HS-225MG 0.15 0.13 3.7 4.4 32.4 16.8 31 31 PWM
HS-225BB 0.15 0.13 3.7 4.4 32.4 16.8 31 22.7 PWM
HS-125MG 0.17 0.13 3 3.5 30 10 34 24 PWM
HS-85MG 0.16 0.14 3 3.5 29 13 30 21.9 PWM
HS-85BB 0.16 0.14 3 3.5 29 13 30 19.2 PWM
HS-82MG 0.12 0.1 2.8 3.4 29.8 12 29.6 19 PWM
HS-81 0.11 0.09 2.6 3 29.8 12 29.6 16.6 PWM
HS-70MG 0.17 0.14 2.4 3 23.6 11.6 29 12.7 PWM
HS-65MG 0.14 0.11 1.8 2.2 23.6 11.6 24 11.9 PWM
HS-65HB 0.14 0.11 1.8 2.2 23.6 11.6 24 11.2 PWM
HS-56HB 0.12 0.1 1.2 1.4 22.6 11.6 24 11.2 PWM
HS-55 0.18 0.14 1.2 1.5 22.8 11.6 24 8 PWM
HS-53 0.16 0.13 1.2 1.5 2836 11.6 24.1 8 PWM
HS-45HB 0.14 0.12 1 1.2 23.6 9.8 22.4 8 PWM
HS-40 0.12 0.11 0.6 0.75 20 8.6 17 4.8 PWM
