HS-85BB
HS-85BB
HS-85BB Click to enlarge

HS-85BB

Premium Micro Servo

PWM Cored Metal Brush
3.5
KGF·CM
Max Torque
0.14
SEC/60°
Speed
19.2
GRAMS
Weight
Torque3 ~ 3.5 kgf·cm
Speed0.16 ~ 0.14 sec/60°
Operating Voltage4.8 ~ 6 V

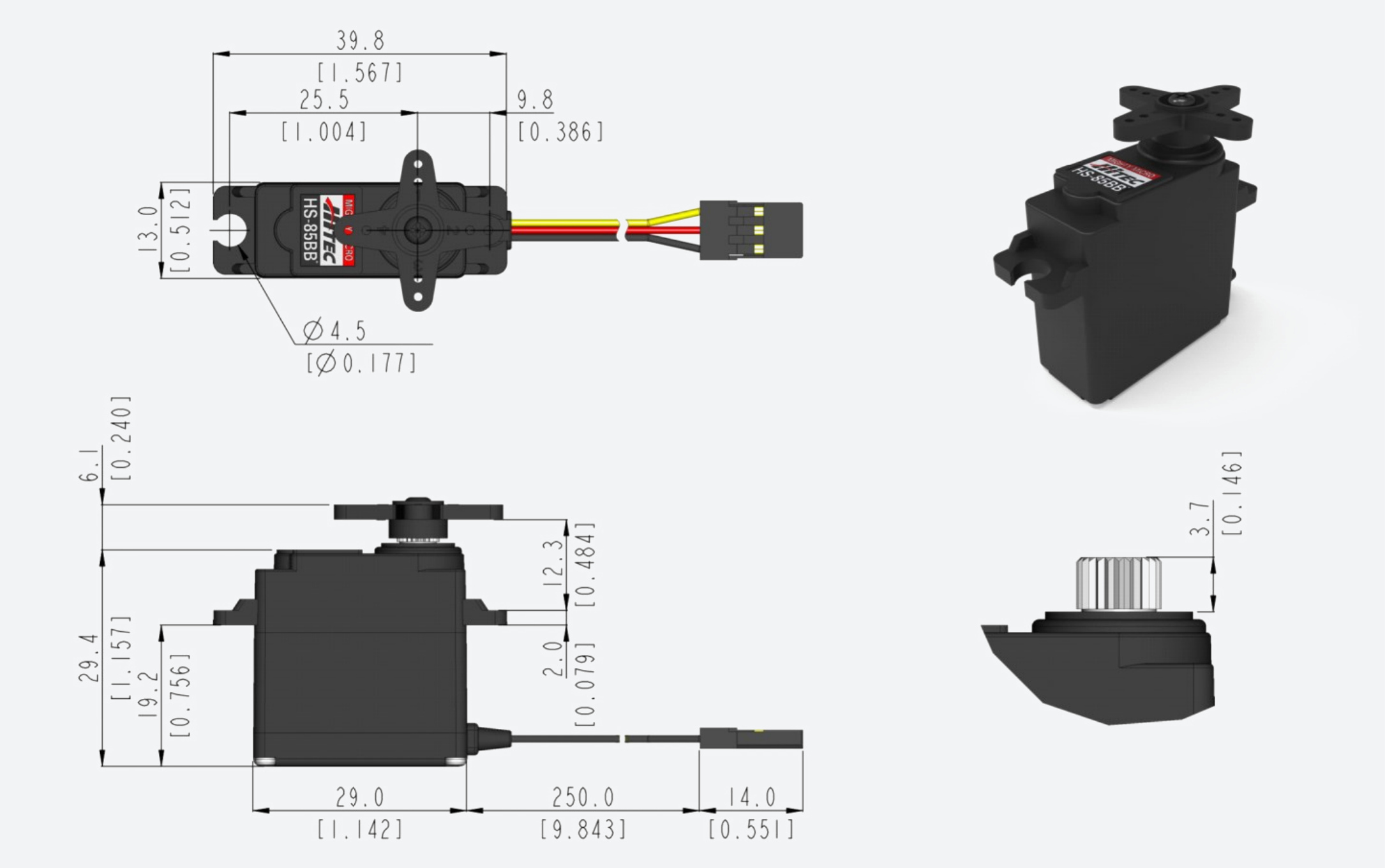

Dimensions (L×W×H)29 × 13 × 30 mm
Motor TypeCored Metal Brush
Gear TypeNylon
ProtocolsPWM
Loading 3D model…
Drag to rotate · Scroll to zoom
Product Description
The HS-85BB features a high power motor for greater speed and torque. The HS-85BB is the choice of modelers looking for a high performance servo without breaking the bank. The ball bearing supported output shaft and sturdy gear trains are preferred for smaller glow and electric airplanes, heli’s and sail planes. Features • High Torque and Precision Centering • Strong Resin Gear Train • Ball Bearing-Supported Output Shaft • Perfect for Applications where a Standard Servo is too Heavy or Large but Standard Torque is Required
Downloads
hs-85bb_3dmodel
ZIP Datasheet
HS-85BB_Specsheet(v2.1)_22L
PDF Datasheet
